Building the antenna
This is a picture referred to the simple antenna made up of two crossed woden axis (at 120°):
And the antenna realised, I suggest placing it in a free obstacle zone:
Obtaining a single piece of this electric junction is very simple: you can cut the original strip in the single piece you need.
continue...
Now we have everything to build our antenna. So, we take a couple of axis made of wood. Indeed, our antenna needs of a wooden support on which to place the cables.
You have to cut a pair of copper of 53 cm longer wires and connect them through an electrict connector to the coaxial cable.
Now, we have to connect the other end to the receiver:
 |
| Our antenna |
 |
| Connection done! |
This is a picture referred to the simple antenna made up of two crossed woden axis (at 120°):
 |
| Project design (handmade!) |

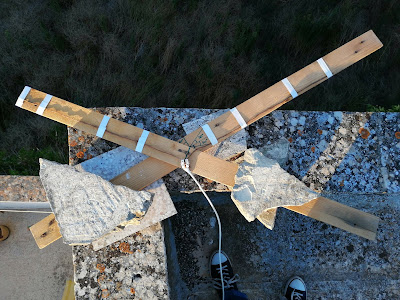

And the antenna realised, I suggest placing it in a free obstacle zone:
 |
| V-antenna! |
 |
| No obstacles near there |
 |
| 120° angle between the two axises |
 |
| The way in which the couple of wires as conjuncted to the antenna cable |
 |
| The final relization in all of its length |
continue...
